T33 Automatic On-Demand Diaphragm Pump 115Vac, 4.0GPM, 45PSI, Industrial Water Pressure Pump for Kitchen, Bathroom, RV, Marine Yacht, Caravan, Garden

Product description

KENCIT DPHC-T33-115Vac General Purpose Water Pump

The DPHC-T33 Series is our general-duty on-demand positive displacement pump. It provides reliable performance in high water flow and moderate pressure applications. This 3 chambers diaphragm pump provides up to 4.0 gallons per minute and is capable of self-priming up to 9.8 ft. (3.0 m) vertical height, and can run dry without damage. This automatic demand water system pump has a Built-in pressure switch automatically starts and stops the pump instantaneously when the discharge valve opens and closes. Easy to install, service and winterize with quick detachable connectors.

.

Specificaions:

Volts: 115V ac

Open Flow: 4.0GPM / 15.0LPM

Pressure Setting: 45PSI / 3.1BAR

Currents (Open Flow): 0.6A

MAX.AMPS: 1.3A

Adjustable PSI Range: 0-80 PSI

Inlet/ Outlet: 1/2” Threaded MNPT

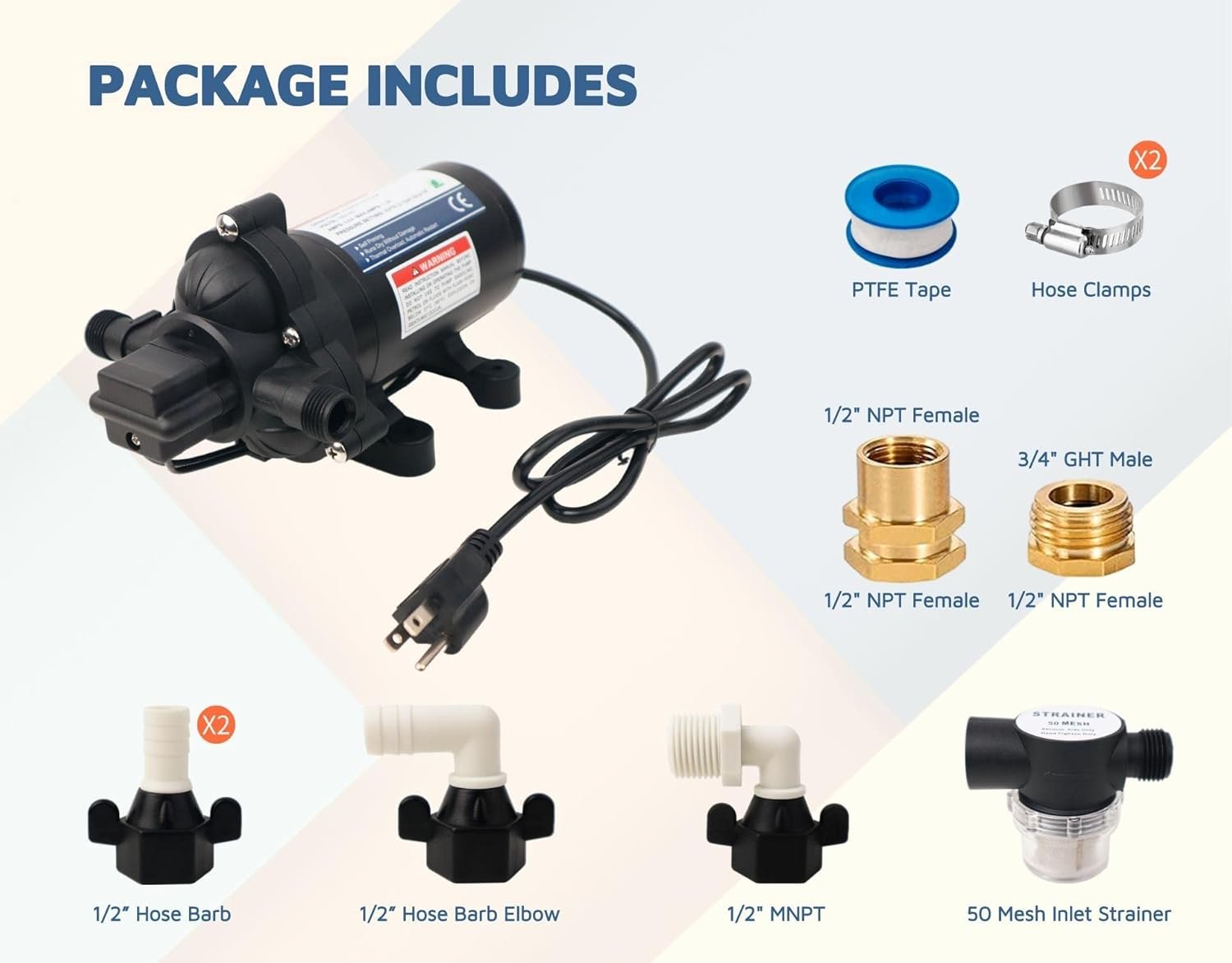

Package Includes: 1 x Water Pump 2 × 1/2” Hose Barb Adapters 1 x 1/2″ Hose Barb Elbow Adapter 1 x 1/2″ MNPT Adapter 2 x 3/4” Garden Hose Adapters 1 x 50 Mesh Inlet Strainer 2 x Hose Clamps 1 x PTFE Tape

*** PLEASE NOTE ***

When the pump leaves the factory, a small amount of water may remain in the pump. This is due to strict tests on the pump to ensure quality and meet the testing standards. This does not mean that the pump has been used.

Copper Motor

Permanent Magnet Motor, Ball Bearing drive throughout pump and motor assures longer pump life. The thermal overload protection function of the motor makes our products safer and more durable.

Smart Pressure Switch

Built-in pressure switch automatically starts and stops pump instantaneously when discharge valve opens and closes.

Run Dry Capabilities

Run dry capability means that you never have to worry about your pump being damaged during installation or maintenance from lack of water.

Can lift up to 9.8 ft. which allows for easy self-priming during install and use.

Quiet Operation

Rubber mounting base allows for efficient and effective noise reduction while running.

New copper core motor ensures that this pump is no louder than an indoor fan.

Built-in pressure switch automatically starts and stops pump instantaneously when discharge valve opens and closes.
Can run dry for extended periods of time without damage and handle liquids up to 140° F (60° C).
Ball bearing drive throughout pump and motor assures longer pump life. Automatic control switch of the pressure inside and motor is thermally protected.
Excellent self-priming capability up to 9.8 feet suction lift. Powerful, permanent magnet motor with low current draw and long life brushes.
This diaphragm water pump install easily and great use in garden, RV, yacht agricultural irrigation spraying and kitchen. Also the best partner of food trunk and fish tank.
